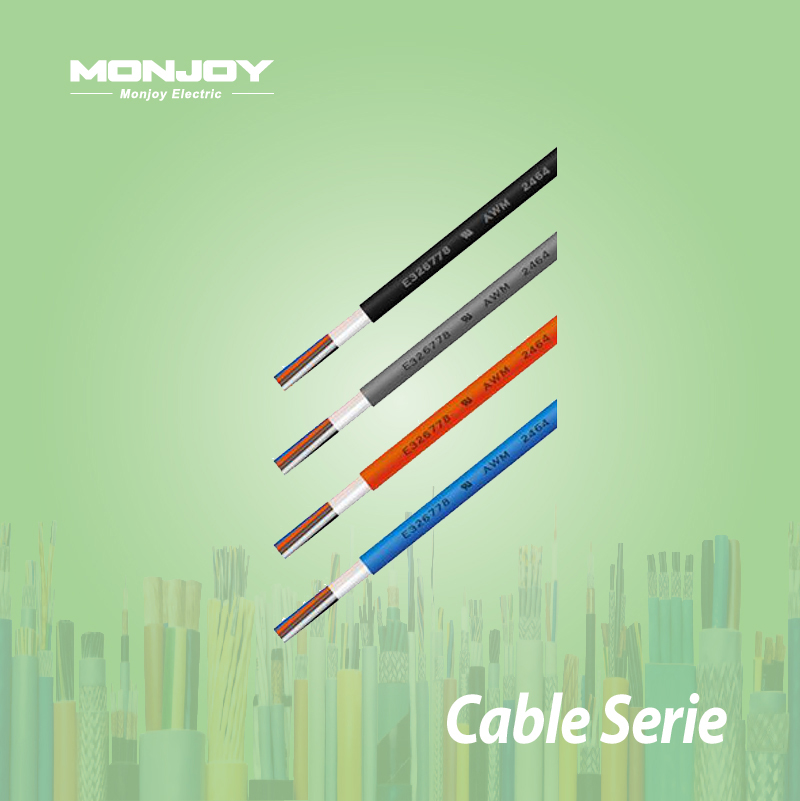

普通信号电缆

连接截面

2×0.34mm 2

3×0.34mm 2

4×0.34mm 2

外套材料

PVC

PUR

PVC

PUR

PVC

PUR

导线绝缘层

PVC

导线规格

7×0.25

42×0.1

7×0.25

42×0.1

7×0.25

42×0.1

导线外径

4.5± 0.1

5.0± 0.1

导线电阻

58Ω/km

55Ω/km

58Ω/km

55Ω/km

79.9Ω/km

55Ω/km

工作温度范围（电缆运动）

-5 ℃/ +65 ℃

工作温度范围（电缆静止）

-20 ℃/ +70 ℃

弯曲半径（电缆运动）

-

45mm

-

45mm

-

50mm

弯曲半径（电缆静止）

-

22mm

-

22mm

-

25mm

认证

5×0.25mm2

8×0.25mm2

12×0.25mm2

Wire gauge

PVC

PUR

PUR

PUR

Material jacket

PVC

Insulation wire

14×0.16

32×0.1

19×0.127

14×0.15

Design of wire (mm)

5.0± 0.1

6.5± 0.1

7.0± 0.1

Cable jacket (mm)

79.9Ω/km

55Ω/km

73Ω/km

73Ω/km

Resistance of wire

-5 ℃/ +65 ℃

Temperature range(cable move)

-20 ℃/ +70 ℃

Temperature range(cable not in move)

-

50mm

-

50mm

-

50mm

Bending radius(cable move)

-

25mm

-

25mm

-

25mm

Bending radius(cable not in move)

Approval
